Painel DECAROC

Este tipo de painél é especialmente utilizado na industria alimentar e de bebidas, como por exemplo, em armazéns de produção de alimentos ou armazenamento em armazéns de temperatura controlada.

Esta gama é ideal para protecção contra incêndios devido à sua resistência segundo a norma A2-S01,d0

Espessura: 60, 80, 100, 120, 150, 170, 200, 240, 300mm
Isolamento: Mineral wool Type 50C & 50F
Comprimento: 1170mm (possibility of 1,120mm for container loading)

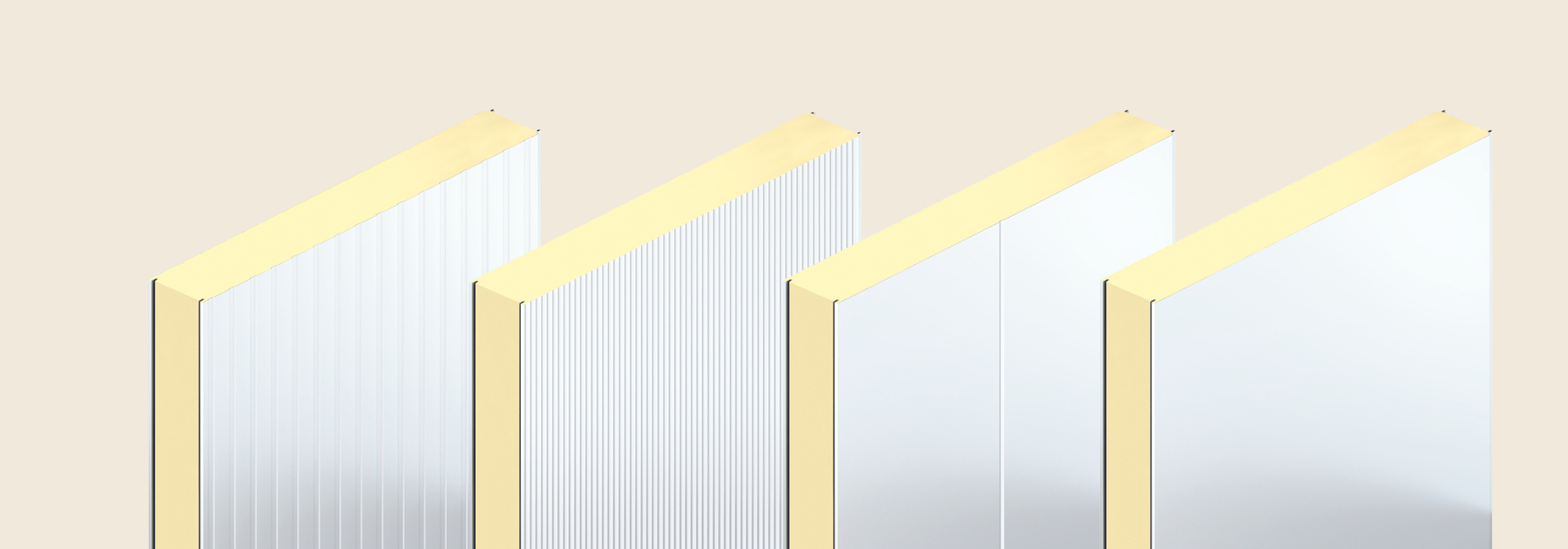

Profile: Standard internal and external profile is Ribbed. Profiles Linea, Twinlook, Ribbed or Smooth are optional.
Aplicação: Partition and exterior wall and ceiling
Temperatura: -25ºC to +40ºC. For all negative temperature applications, box-in-box solution is required.
Instalação: Vertical or horizontal in partition and exterior wall application
Acabamento : CLEANsafe 25 RAL 9002 with removeable protective film as standard. Other finishes available on request.
Reacção ao Fogo: A2-s1,d0 (Decaroc)
Resistência ao Fogo: 50F mineral wool insulation, partition and exterior wall application

EI 60: 80 mm horizontal & vertical installation

EI 90: 100 mm horizontal and vertical installation, partition and exterior wall application (with stitching screw obligatory)

EI 120: 120 mm horizontal installation, partition and exterior wall application

EI 120: 120 mm vertical installation, partition and exterior wall application

EI 180 : 300 mm vertical and horizontal installation, partition and exterior wall application

50F mineral wool insulation, ceiling application

EI 120: 120 mm, ceiling application

EI 180 : 300 mm ceiling application, up to 5m span with suspension at 2.5m

Acustica:

60 mm, Sound Reduction (R_w (C;Ctr) [d]: 25 (-2,9 ;-3,6)

Caracteristicas:

	Espessura [mm]	40	60	80	100	120	140	170	200	220
Decaroc 50C λ=0.041W/m.K	Parede U_n,S (W/m².K)	0.622	0.477	0.387	0.326	0.263	0.233	0.199	0.167	0.134
	Parede R (m².K/W)	1.607	2.094	20582	3.070	3.802	4.290	5.021	5.997	7.460
	Partição U_n,S (W/m².K)	0.589	0.458	0.374	0.316	0.257	0.228	0.196	0.164	0.132
	Partição R (m².K/W)	1.697	2.184	2.672	3.160	3.892	4.380	5.111	6.087	7.550
	Teto ventilado U_n,S (W/m².K)	0.611	0.171	0.383	0.323	0.261	0.232	0.198	0.166	0.134
	Teto ventilado R (m².K/W)	1.637	2.124	2.612	3.100	3.832	1.32	5.051	6.027	7.490
	Peso (0.6*0.5mm skins)(Kg/m²)	14.93	16.83	18.73	20.63	23.48	25.38	28.23	32.03	37.63
Decaroc 50F λ=0.044W/m.K	Parede U_n,S (W/m².K)	0.663	0.509	0.414	0.348	0.281	0.249	0.213	0.179	0.144
	Parede R (m².K/W)	1.509	1.963	2.418	2.872	3.554	4.009	4.690	5.600	6.963
	Partição U_n,S (W/m².K)	0.626	0.487	0.399	0.338	0.274	0.244	0.209	0.176	0.142
	Partição R (m².K/W)	1.599	2.053	2.508	2.962	3.644	4.099	4.780	5.690	7.053
	Teto ventilado U_n,S (W/m².K)	0.650	0.502	0.409	0.345	0.279	0.248	0.212	0.178	0.413
	Teto ventilado R (m².K/W)	1.539	1.993	2.448	2.902	3.584	4.039	4.720	5.630	6.993
	Peso (0.6*0.5mm skins)(Kg/m²)	16.43	18.83	21.23	23.63	27.23	29.63	33.23	38.03	45.23

LINK: https://www.isocab.com/en-gb/products/insulated-panel-systems/decaroc
